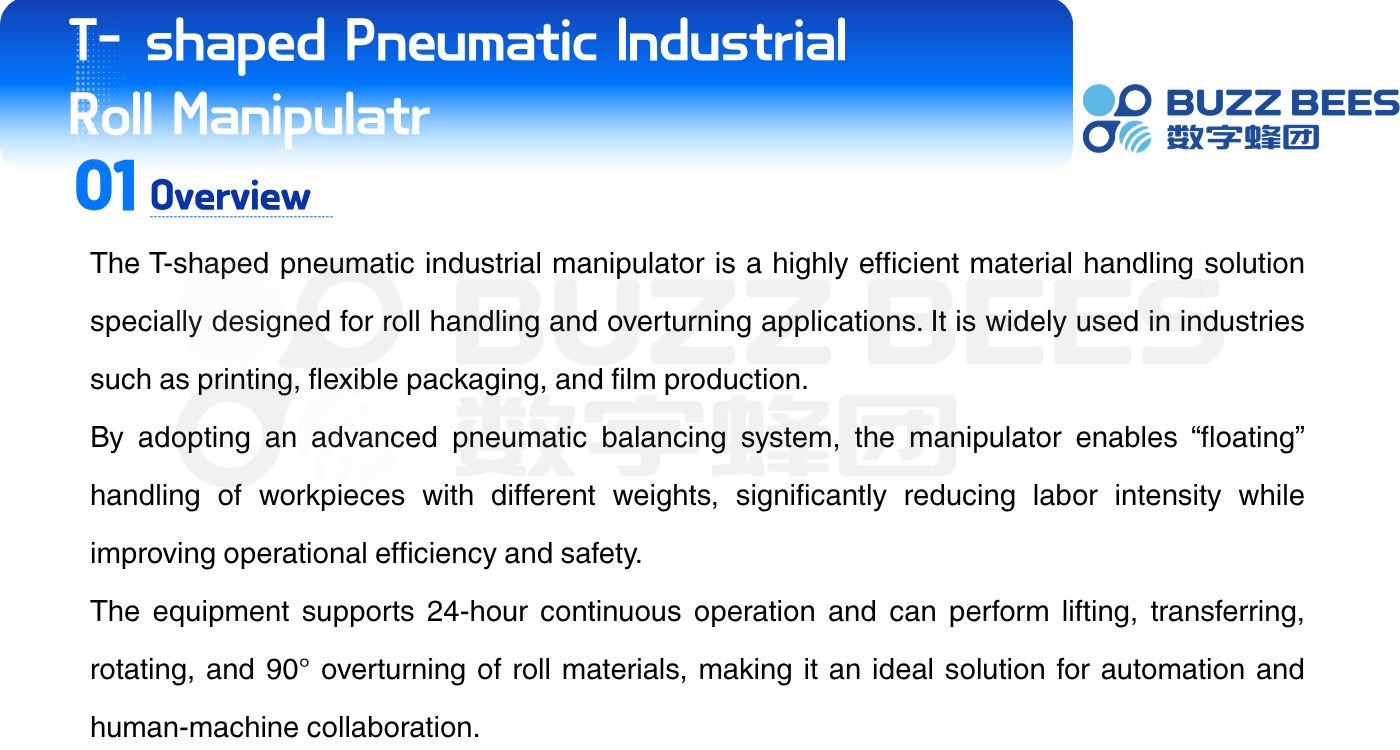

T-shaped Pneumatic Industrial Roll Manipulator
Load Capacity
≤ 100 kg
Working Radius
Max: 2500 mm / Min: 650 mm
Lifting Stroke
1400 mm
Lifting Speed
0 – 350 mm/s
Rotation
360° (Main) / 270° (Middle) / 720° (End)
Gripper Type
Pneumatic Expanding Chuck
Workpiece Size
Ø ≤ 850 mm, Height ≤ 1000 mm
Core Diameter
3" / 6"
